Customer demand is our pursuit
This machine is mainly suitable for sorting garlics and onions.
The sorting speed and discharging speed are adjustable.
The front end of the discharging belt is designed with bagging device, and the garlic can be bagged directly after grading.
Industrial garlic grading mushroom sorting machine
Introduce for automatic onion grading machine
1. This machine is mainly suitable for sorting garlics and onions.
2. This machine installs brush roller in each grade, which can effectively prevent garlic clogging the sorting holes.
3. The sorting speed and discharging speed are adjustable.
4. The front end of the discharging belt is designed with bagging device, and the garlic can be bagged directly after grading.
5. The machine is with mobile casters, which is easy to move.
6. Drive mode: shaft drive.
Parameter for garlic grader sorter machine
Model | TPP-KDDS4 |
Capacity | 3-5ton/hr |
Grade quantity | 4grades(3pcs sorting belts) |
Power | 2.2kw |
Voltage | 380V/220V |
Sorting belt width | 800mm |
Dimension | 3900*1450*1500mm |
Weight | About 640kg |
Material | Main part is made of SS201 Sorting belt is PVC(3mm thickness) Chain and chain wheel is 45# steel. |

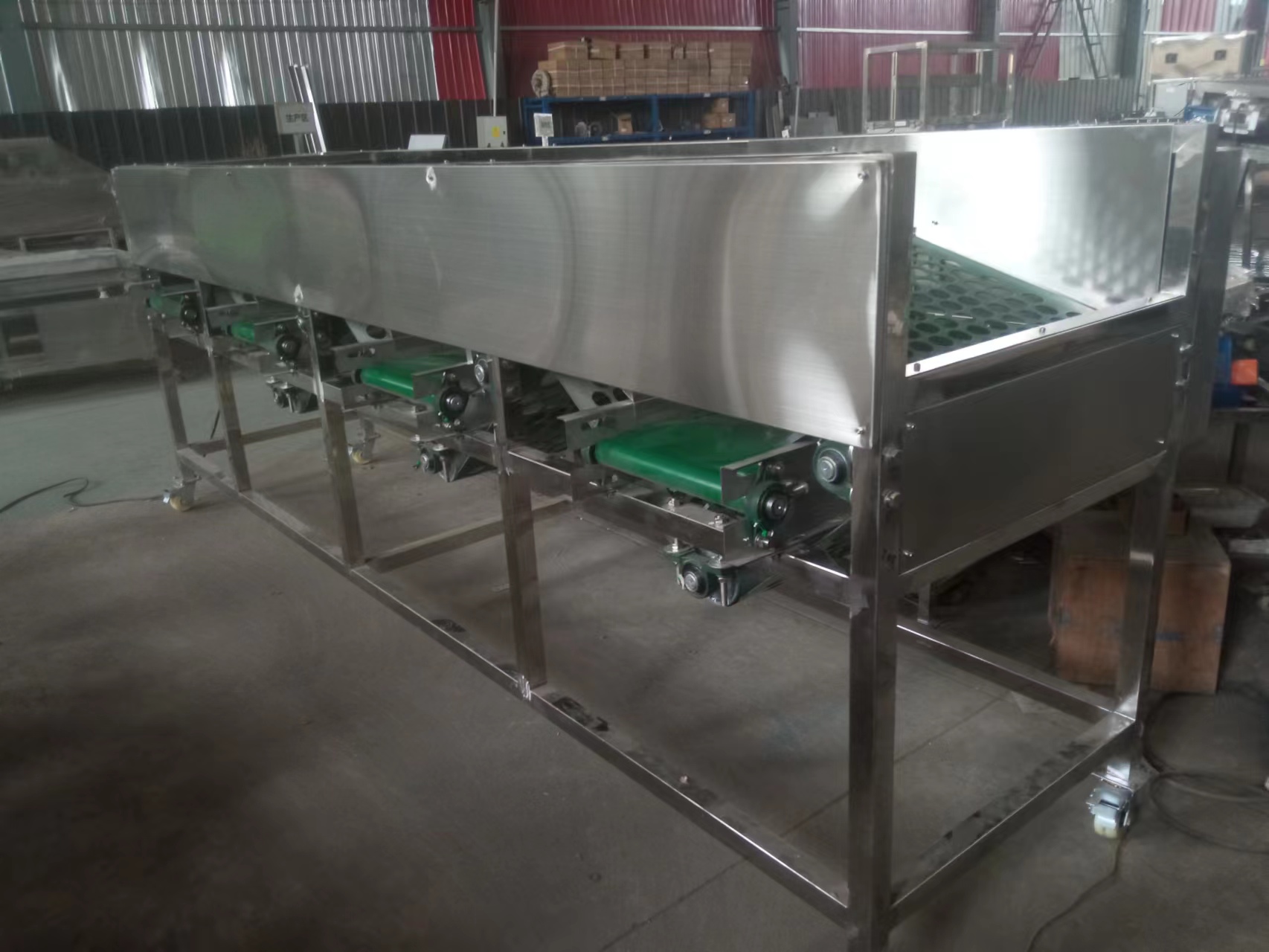

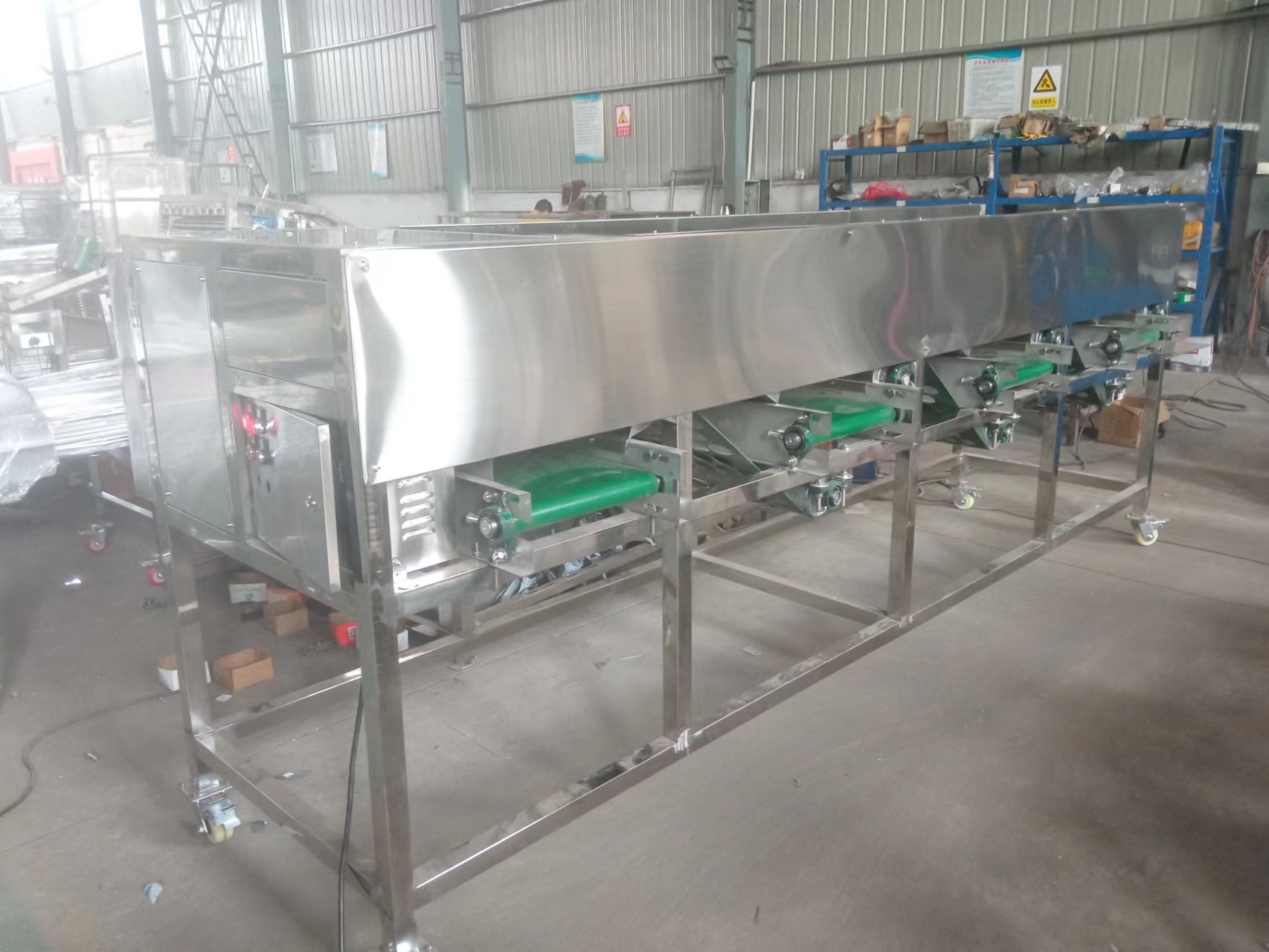

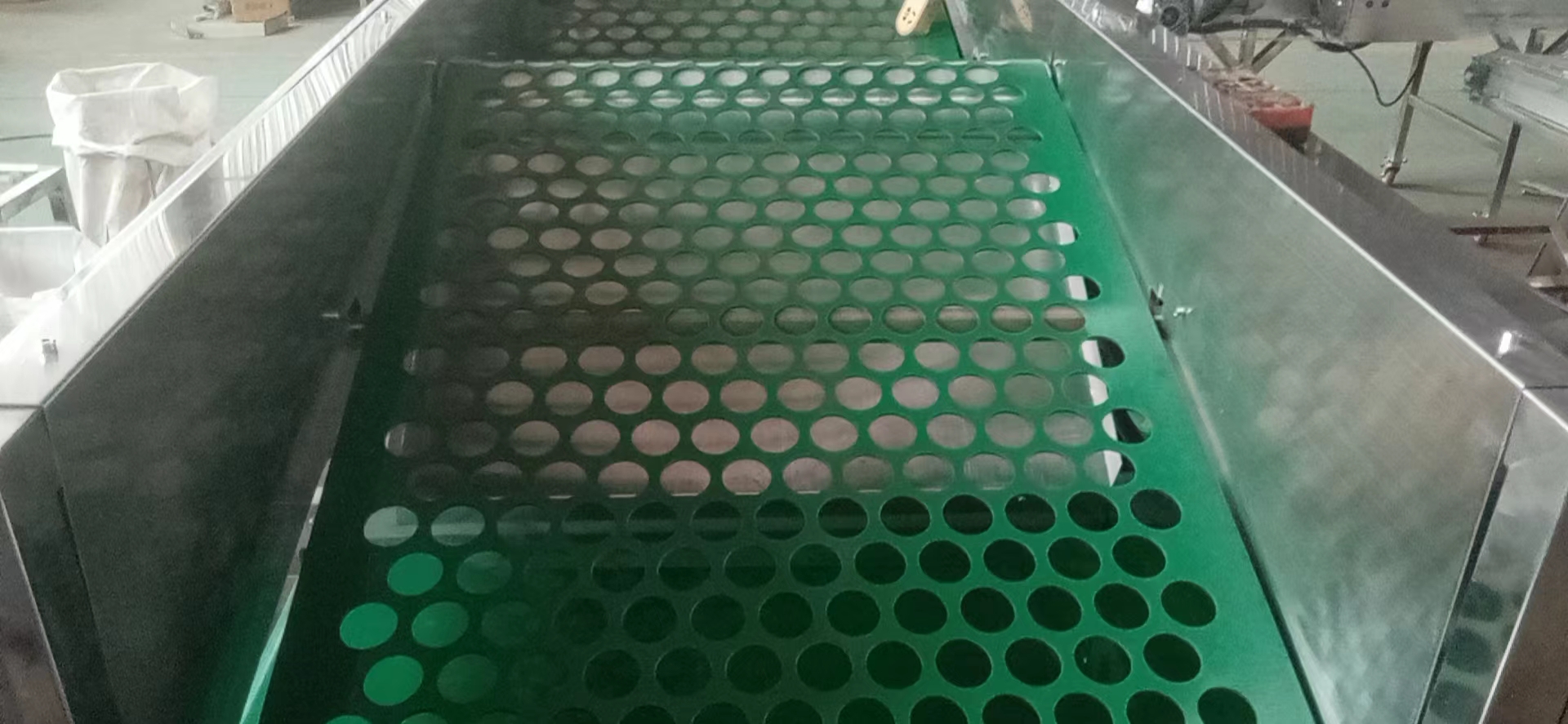

Picture for mushroom grading machine
