Ice Maker (bullet Shape)
Ice Maker (bullet Shape)
Product application and usage:

Determination standard of ice quantity, ambient temperature 15 degrees celsius, water product 10degree Celsius.

  • Model: BNJ-100,BNJ-120,BNJ-130
  • Capacity: 100KG/24h
  • Voltage: 220v
  • Material: ss304
  • Dimension: 682*610*1050mm
  • Weight: 74kg
  • Product description


    Matters needing attention in product inspection:

    1. Determination standard of ice quantity, ambient temperature 15 degrees celsius, water product 10degree Celsius.

    2. Water supply pressure: 0.1Mon-0.5Ma

    3. Water listening requirements: Use international standard drinking water. If the water quality is not good, a water treatment system can be added to ensure the normal ice making in ball making machine, but the water supply pressure should be guaranteed.

    4. the installation of environmental performance, mood adjustment, dry like, dry home, through direct sunlight, ball making machine because of the surrounding garden, the real code should be 200- in the same distance room.


    Product parameter


    Model

    BNJ-100

    BNJ-120

    BNJ-130

    Output(kg/24h)

    100KG/24h

    120KG/24h

    130KG/24h

    Bin Capacity(kg)

    60KG

    60KG

    60KG

    Power(W)

    680 W

    710W

    730W

    Cooling mode

    Air air cooling

    Number of ice

    4*6*2=48

    4*6*2=48

    5*6*2=60

    Net Weight (kg)

    74

    76

    78

    Gross Weight (kg)

    80

    82

    84

    product size

    682*610*1050mm

    Packing size

    750*685*1100mm

    Wooden box size

    780*730*1230mm

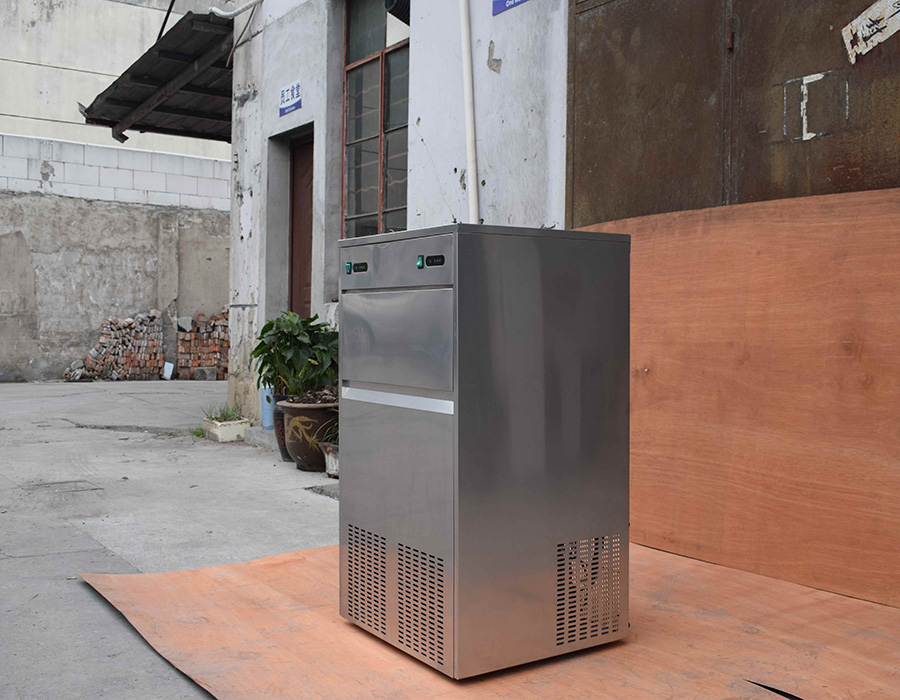

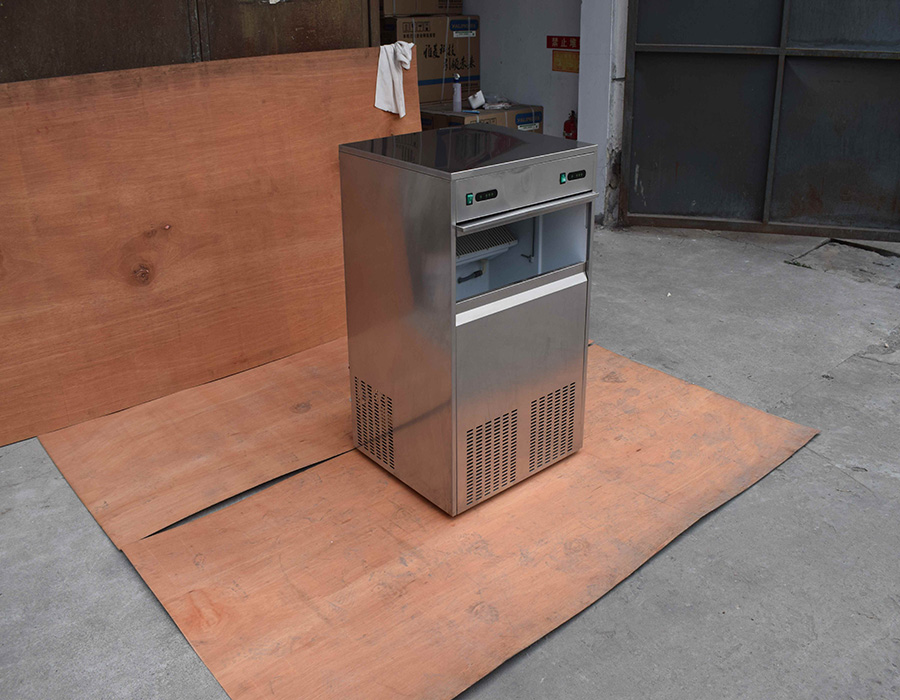

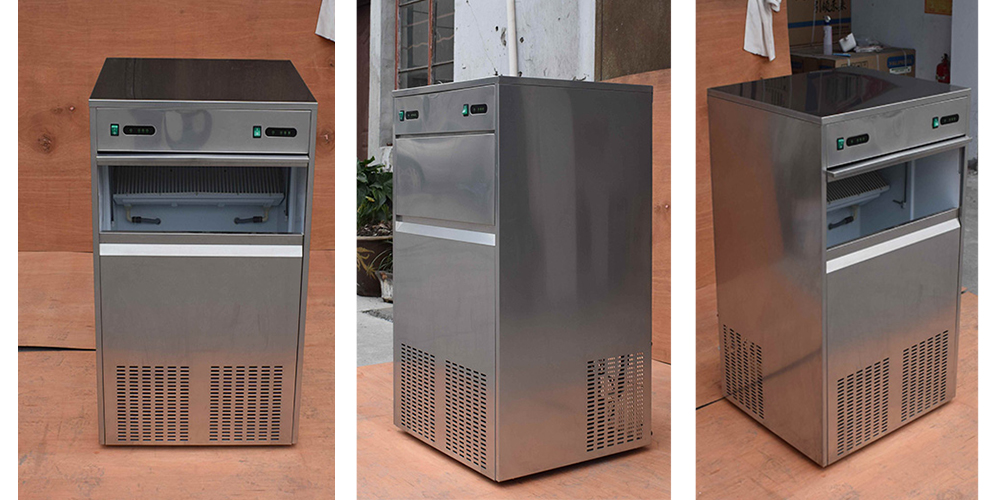

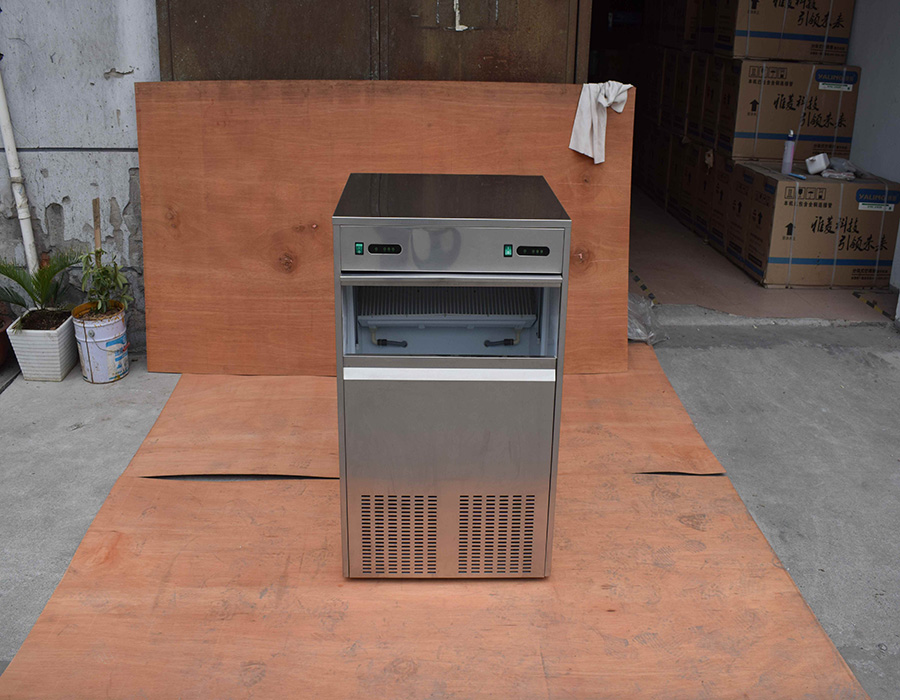

    Product picture
