powder packing machine
powder packing machine
Product application and usage:

Fixed quantity packaging of powder,such as measuring, bag-making, filling, sealing, printing date, cutting, counting, cutting and tearing easily.

  • Model: TPP-DF50
  • Capacity: 10-60pcs/minute
  • Voltage: 1.5kw, 220v 50HZ
  • Material: ss304
  • Dimension: 700X900X1700mm
  • Weight: 180kg
  • Product description


    Feature:

    1. The automatic powder packaging machine can automatically complete all the work in the packaging process, such as measuring, bag-making, filling, sealing, printing date, cutting, counting, cutting and tearing easily.

    2. The bag-pulling system is controlled by stepping motor. The system has the characteristics of high accuracy, low noise and long life, etc. There is no need to adjust other parts. The bag-making length can be changed only by changing parameters on the display screen, and it is accurate.

    3. The machine also has a color identification system, which can obtain a complete trademark pattern when packing the colored label packaging materials.

    4. Stepless adjustment speed and bag length: the packing speed and bag length can be adjusted within the rated range without changing parts.

    5. All the food contact materials are made of 304 stainless steel, clean and hygienic, fully in line with the national food hygiene standards.

    6. Unique embedded sealing, reinforced heat sealing mechanism, intelligent temperature controller temperature control, with good thermal balance suitable for various packaging materials, good performance, low noise, clear sealing pattern, strong sealing.

    7. According to customer's request, we can change the three-side or four-side hot seal mould and bag maker to meet the needs of different products

    Product parameter


    model

    TPP-DF50

    Packing speed

    10-60pcs/minute

    Bag size

    Max. width: 10mm

    Max. Length: 150mm

    Sealing type

    Three-edge sealing ,four-edge sealing

    Bag cutting type

    Electric rotary cutter

    Packing weight

    10—100g

    power

    1.5kw, 220v 50HZ

    dimension

    700X900X1700mm

    Material type

    Powder material

    Degree of automation

    automatic

    weight

    180kg

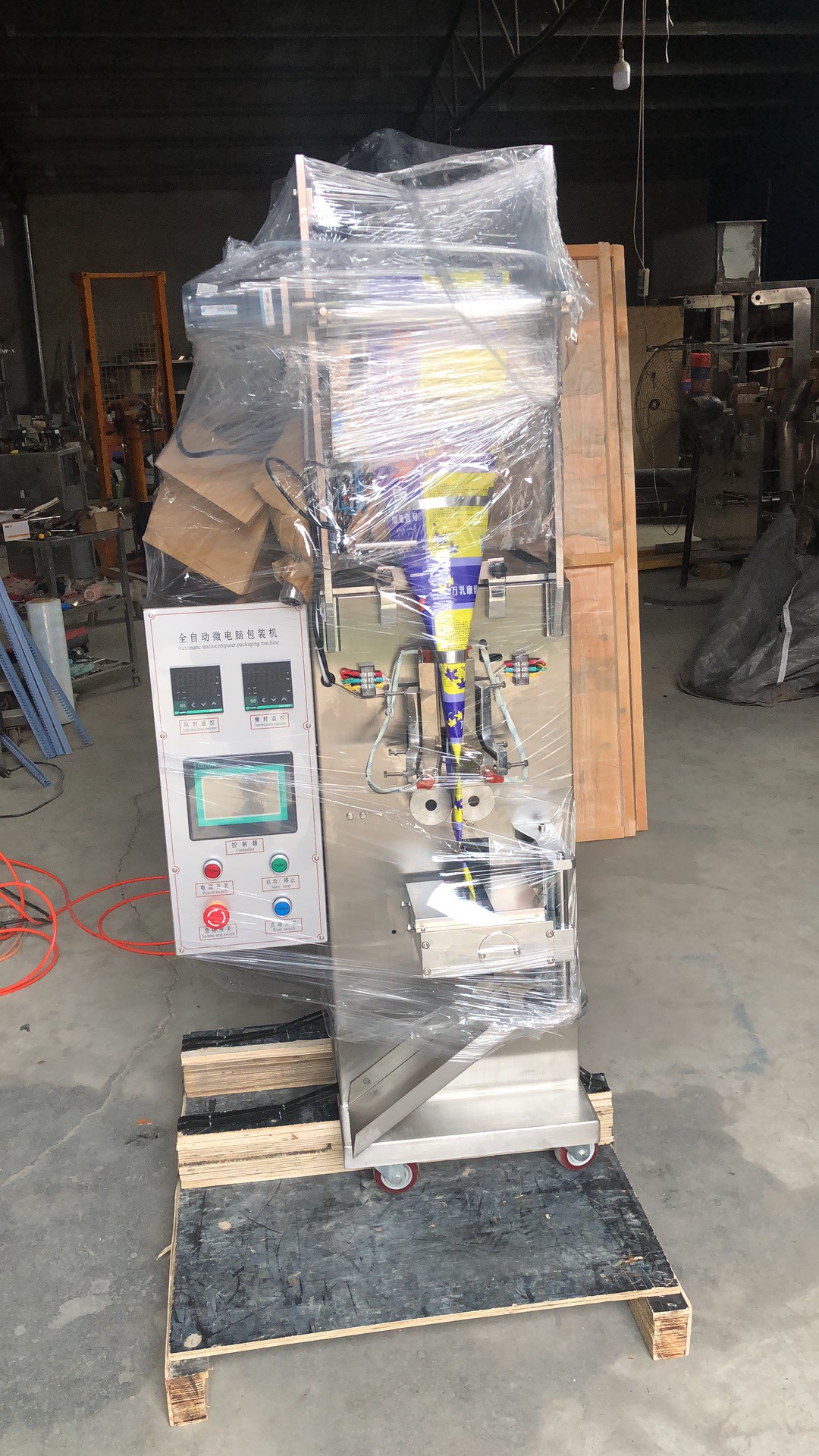

    Product picture
