Single head glass bottle capping machine
Single head glass bottle capping machine
Product application and usage:

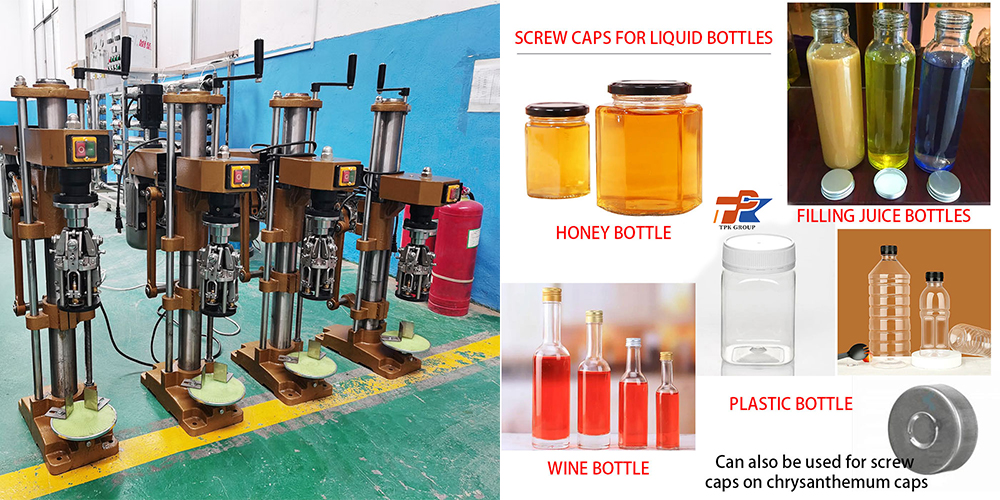

It is widely used in the screwing of bottle caps of various liquid bottles such as still drinks, juices, wines, mineral water, purified water, canned goods, etc. It does not damage the bottle caps, makes the appearance more beautiful, and improves the grade of the products.

  • Model: TPP-XG1
  • Capacity: 1200 pieces/hr (according to the customers’ requirement on the speed)
  • Voltage: 220V
  • Material: SS304
  • Dimension: 600*210*900mm
  • Weight: 80kg
  • Product description


    It is widely used in the screw capping of various non-carbonated beverages, juices, alcohol, mineral water, purified water, canned and other liquid bottles. It does not damage the bottle cap, the appearance is more beautiful, and the grade of the product is improved.


    1. A buffer device is added to the adjustment bracket, which can adapt to the height within 50MM without bottle breakage, greatly reducing waste and increasing economic benefits.

    2. The bottle mouth is automatically positioned, the sealing wheel is evenly stressed, and the sealing quality is good.

    3. The sealing head pressure is large, and there is no leakage in the sealing.

    4. It runs smoothly, with low noise, low energy consumption and high work efficiency.

    5. It can be used for multiple purposes. It can press anti-counterfeiting caps, crown caps, and various high-end anti-counterfeiting caps and mineral water caps. You only need to change a set of heads to work.


    Product parameter


    model

    TPP-XG1

    Capacity

    1200 pieces/hr (according to the customers’ requirement on the speed)

    Suitable cap type

    metal cap

    Suitable bottle height

    100-350mm

    Suitable bottle diameter

    20-90mm

    Power

    0.37kw

    dimension

    600*210*900mm

    weight

    80kg

    Package dimensions

    740*300*1050mm

    Package weight

    96kg

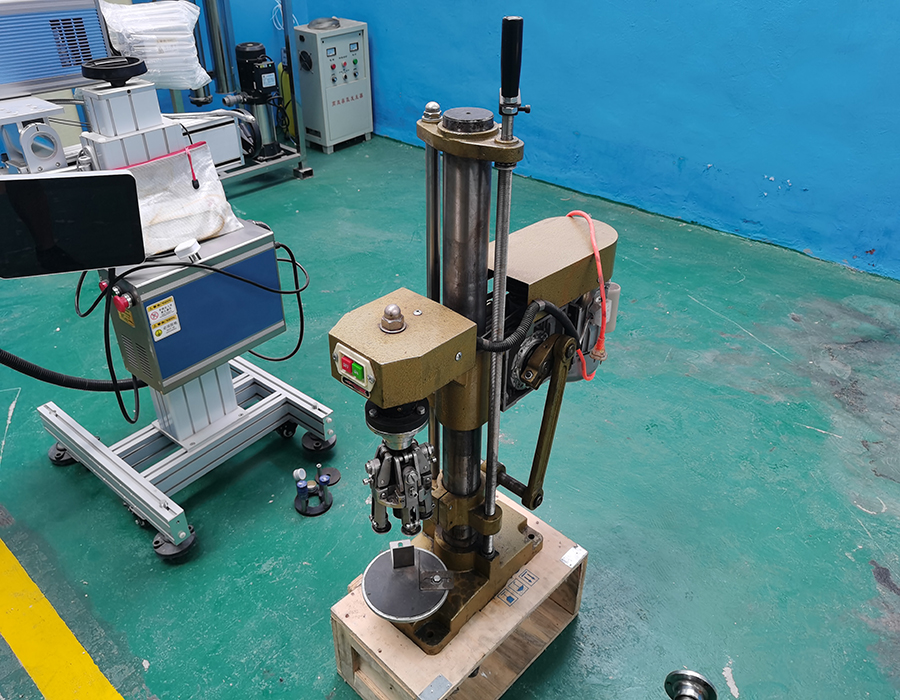

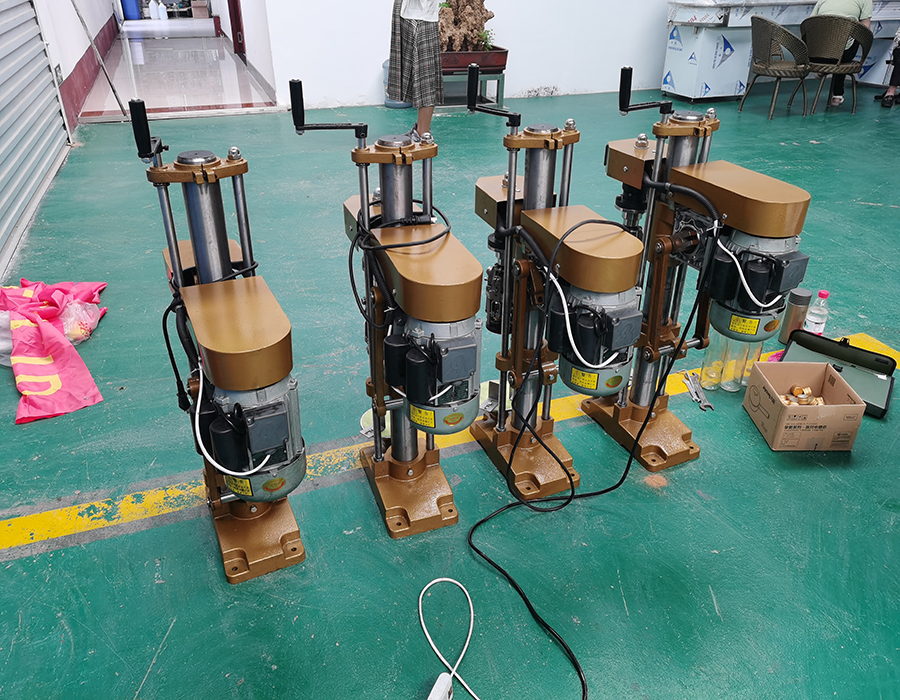

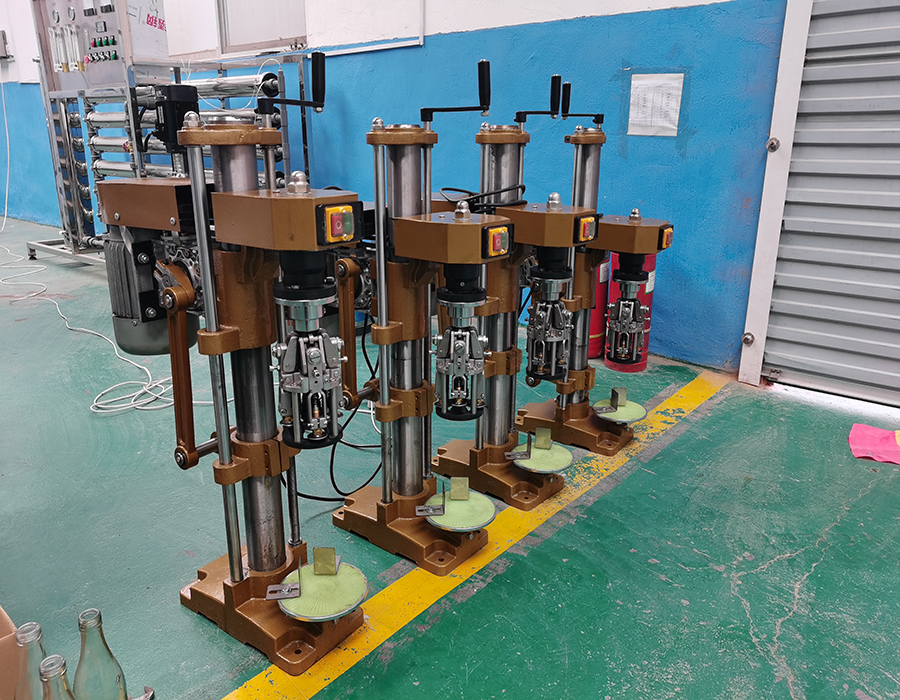

    Product picture
