Half Automatic weighing bottle filling machine
Half Automatic weighing bottle filling machine
Product application and usage:

The machine is for filling various non-gas fluid and semi-fluid by intelligent weighing system.

  • Model: TPP-BZC2
  • Capacity: 150-300pcs/hr(Depending on the viscosity)
  • Voltage: 2.2kw, 380V50HZ, 3phases
  • Material: ss304
  • Dimension: 850*900*1600mm(depends on the size of the barrel)
  • Weight: 220kg
  • Product description


    Introduction:

    *The machine is for filling various non-gas fluid and semi-fluid by intelligent weighing system. It is with wide range of application, such as edible oil, lubricating oil, antifreeze, urea liquid, paint, waterproof paint, liquid fertilizer, syrup and other viscous non-viscous liquid.

    *It is an ideal model for various food industries, daily chemical industry and other industries. The machine adopts the automatic weighing method, which makes the measurement more accurate and the operation more convenient.


    Feature:

    1. The machine is controlled by programmable logic controller (PLC), with digital transmission module, touch screen input operation, which is characterized by convenient operation and high production efficiency.

    2. The machine appearance humanized design, beautiful and generous, the body is all made of stainless steel.

    3. The machine has a high degree of automation, measurement and adjustment are realized in the touch screen; intelligent operation of the machine is more reliable, convenient, more friendly human-machine interface.

    4. All parts of the machine are made of 304 stainless steel, which is the ideal packaging equipment in the chemical industry.

    5. the machine USES the diving filling, anti-drip filling valve, can effectively prevent the filling liquid because of drip leakage caused by pollution.

    6. The machine is equipped with built-in power pump, no need to be equipped with high level tank, which simplifies the installation process and saves customers' cost at the same time.


    Product parameter


    Model

    TPP-BZC2

    Filling head

    2 heads

    Filling scope

    1-5L or 5L-25L

    Capacity

    150-300pcs/hrDepending on the viscosity

    Power

    2.2kw, 380V50HZ, 3phases

    Air source

    0.6MPa(the air compressor needs to be prepared by user)

    Filling accuracy

    ≤±0.5

    Dimension

    850*900*1600mm(depends on the size of the barrel

    weight

    220kg

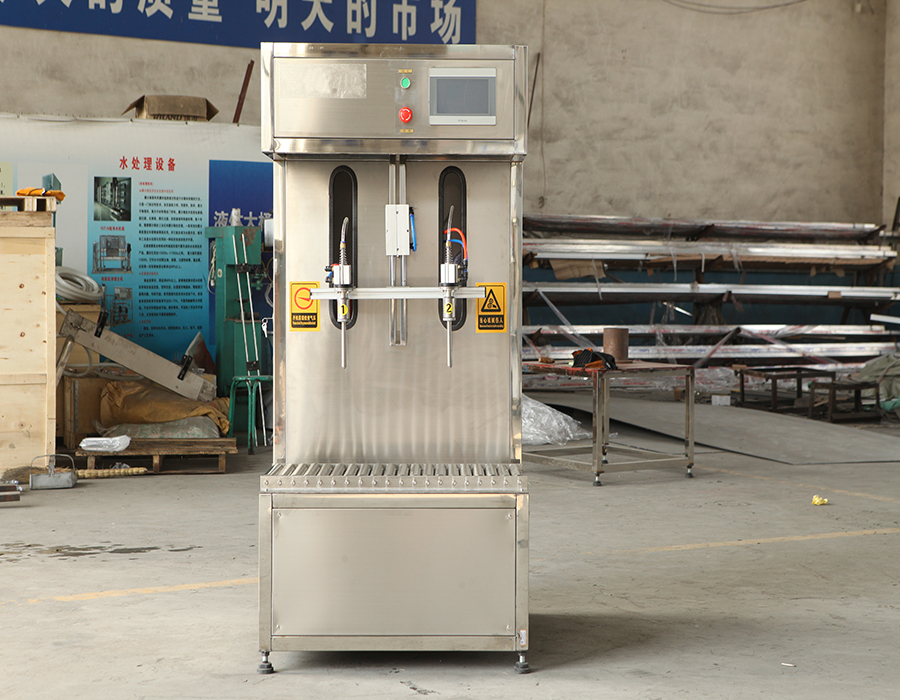

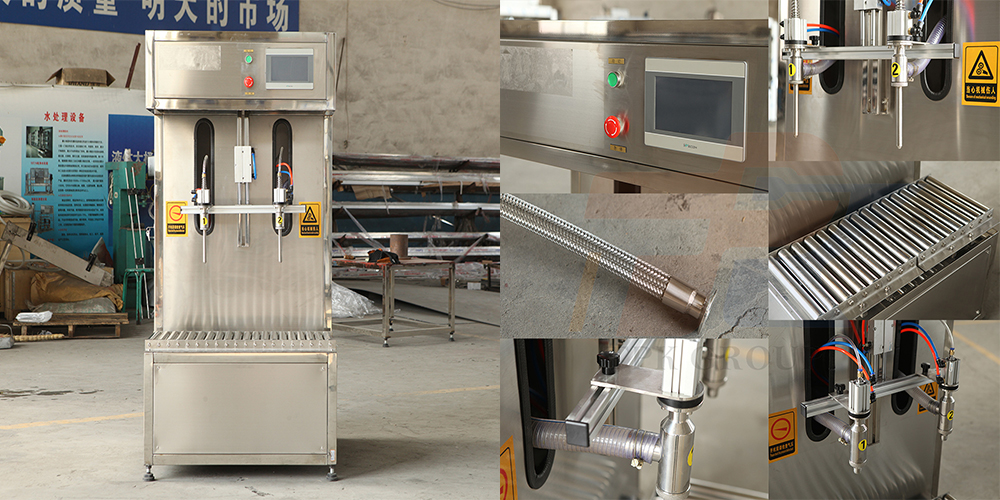

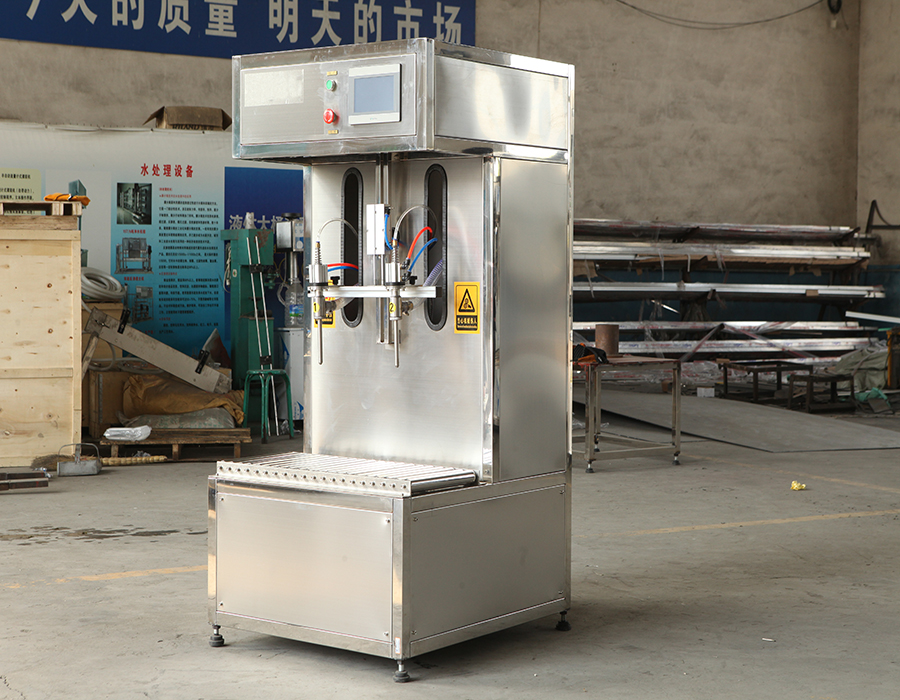

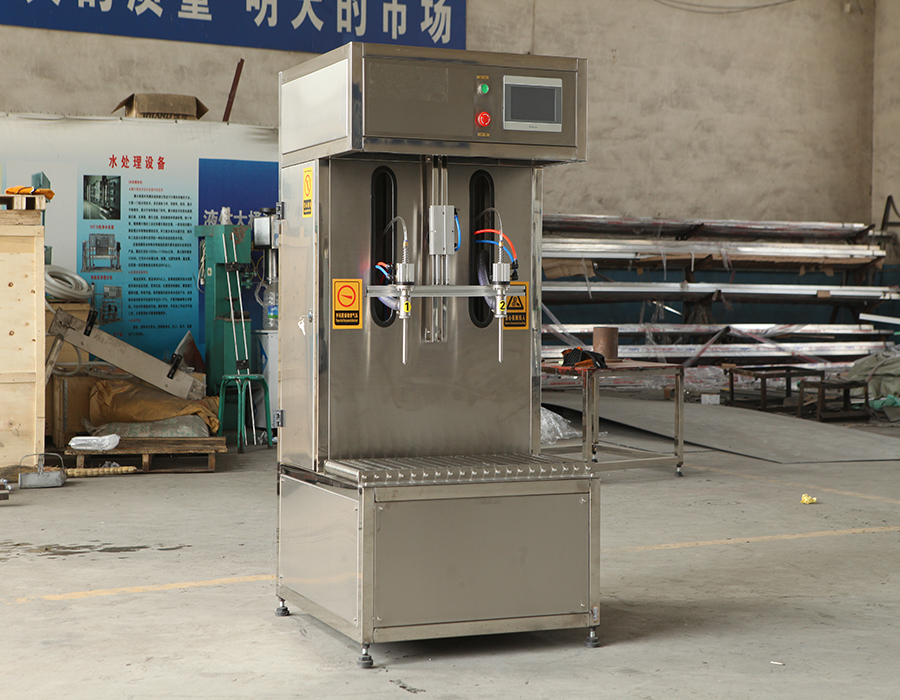

    Product picture
