Automatic bottle labeling machine
Automatic bottle labeling machine
Product application and usage:

This automatic labeling machine is suitable for round bottle labeling. It can label front label, back label and neck label.

  • Model: TPP-TB3
  • Capacity: 15-45pcs/minute
  • Voltage: 220V/50HZ, 1phase
  • Material: SS304
  • Dimension: 2400mm*1200mm*1530mm
  • Weight: 185Kg
  • Product description


    Introduction:

    *This automatic labeling machine is suitable for round bottle labeling. It can label front label, back label and neck label.

    *The machine adopts PLC and touch screen system.

    *The operation language is in English.


    Product parameter


    model

    TPP-TB3

    Suitable bottle size

    height 25-300mm,

    Diameter 25-100mm.

    (It is related to the size proportion of the product)

    Suitable label size

    length20-285mm,

    width20-175mm



    Labeling speed

    15-45pcs/minute

    (It is related to the size of bottles and label size)

    Labeling precision

    ±1mm

    dimension

    2400mm*1200mm*1530mm

    Total power

    1.75kw

    Main machine: 1kw, conveyor: 0.75kw

    voltage

    220V/50HZ, 1phase

    weight

    185Kg

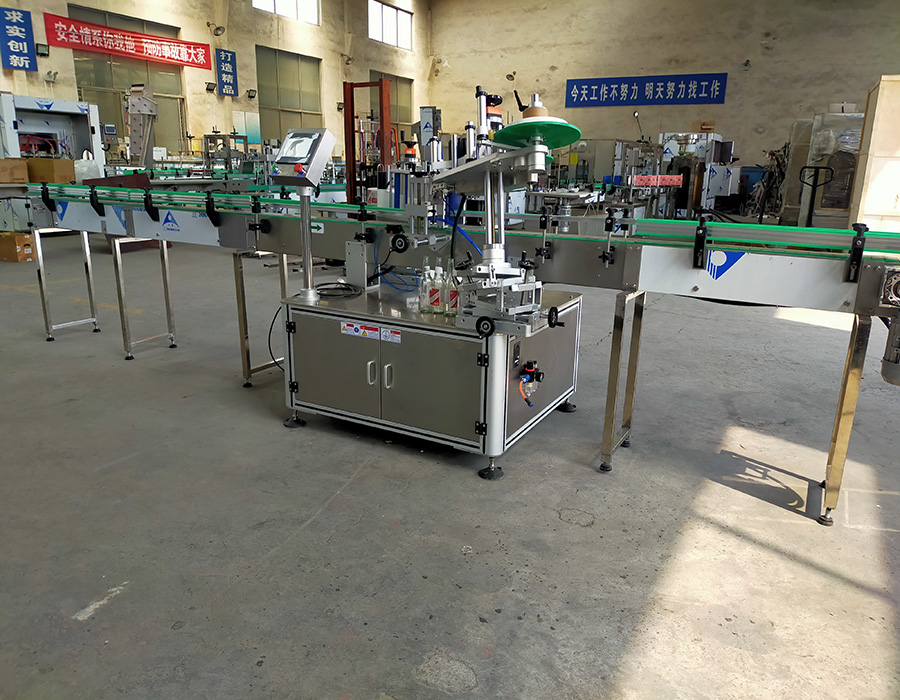

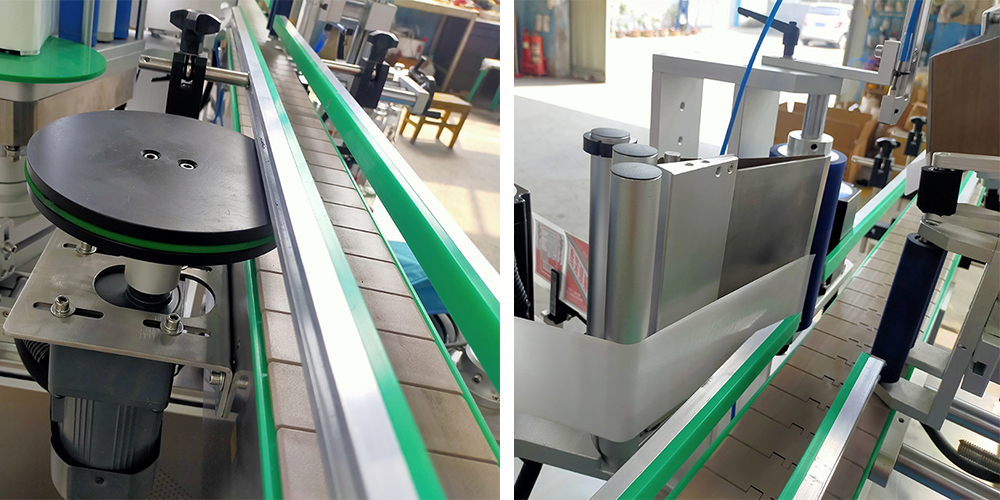

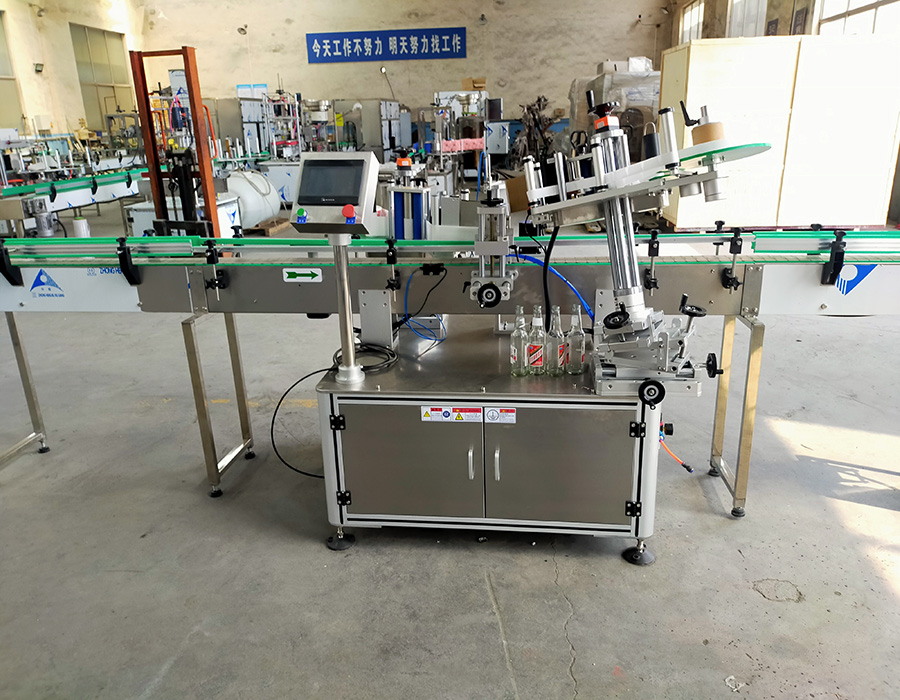

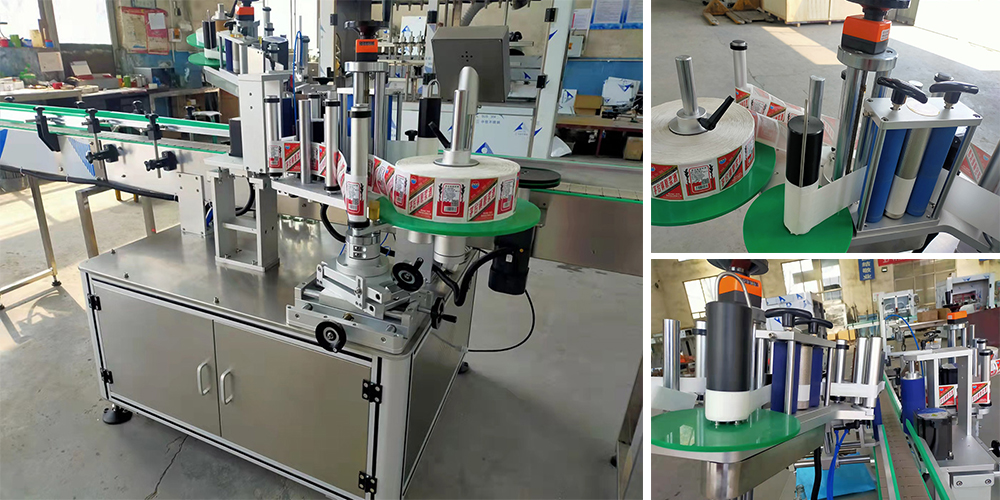

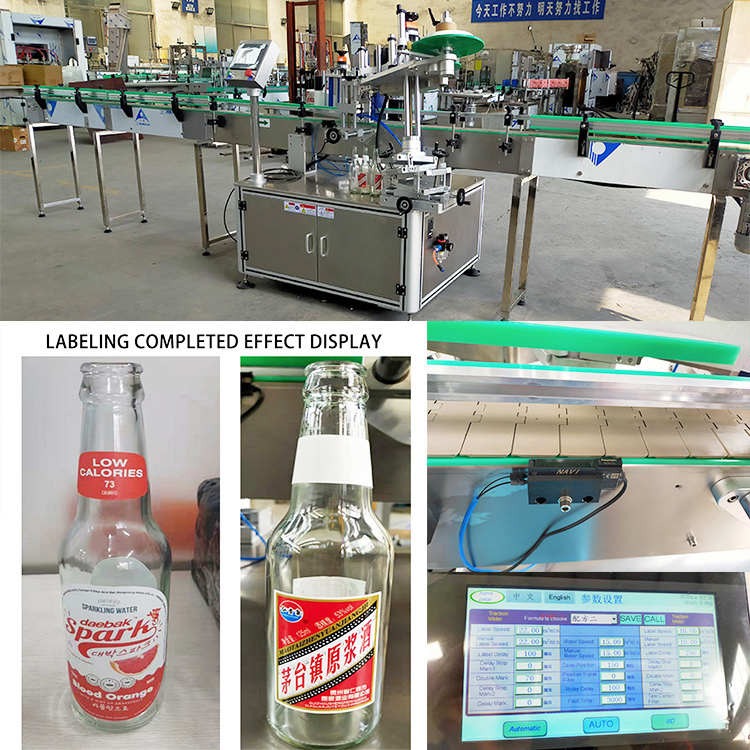

    Product picture
