Customer demand is our pursuit
TPP-4J cup box filling and sealing machine is fully automatic filling, suitable for liquid filling and sealing of plastic cup boxes of various shapes. The packaged products are beautiful and high-end.
Product description
Introduction:
Automatic Japanese Omron PLC control system. Automatic cup dropping—plunger filling(leak-proof)—ultraviolet sterilization—cursor positioning—double hot seal—automatic film cutting—automatic film collecting—finished product automatic dropping
Machine material: machine frame is made of carbon steel 45#, which is coated by stainless steel metal plate. Other parts of machine are all made of stainless steel 304.
Application and feature:
TPP-4J automatic cup filling sealing machine is suitable for kinds of shapes of plastic cups filling and sealing. Packed product is very beautiful and top grade. This machine is fully automatic from cup sending, filling, sealing, film collecting and cup discharging.
This machine is multi-functional model.
Product parameter
model | TPP-4J（1*4） |
Filling head | 4 heads |
Filling method | plug filling(leak-proof) |
Filling material | Liquid or semi-liquid |
capacity | 3500-3800cups/h |
Filling quantity | 30-300 g adjustable |
Filling accuracy | 2-3 g |
power | 3.5 kw |
Air consumption | 0.65m³/min |
Power supply | 380V/50HZ |
Temperature control | 0-400ºC |
Weight | 1200 KG |
Dimension | 3000*800*1900 mm |

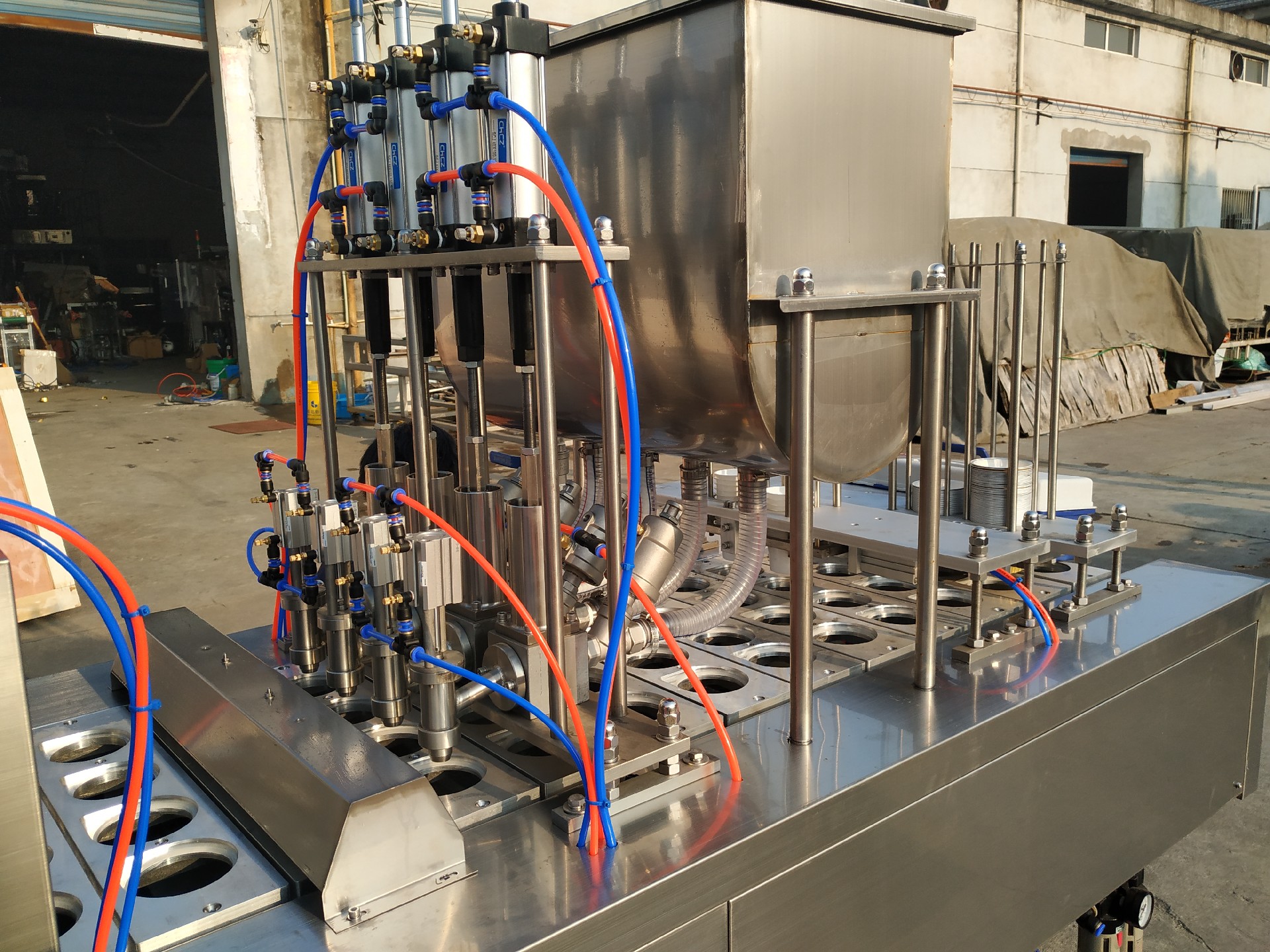

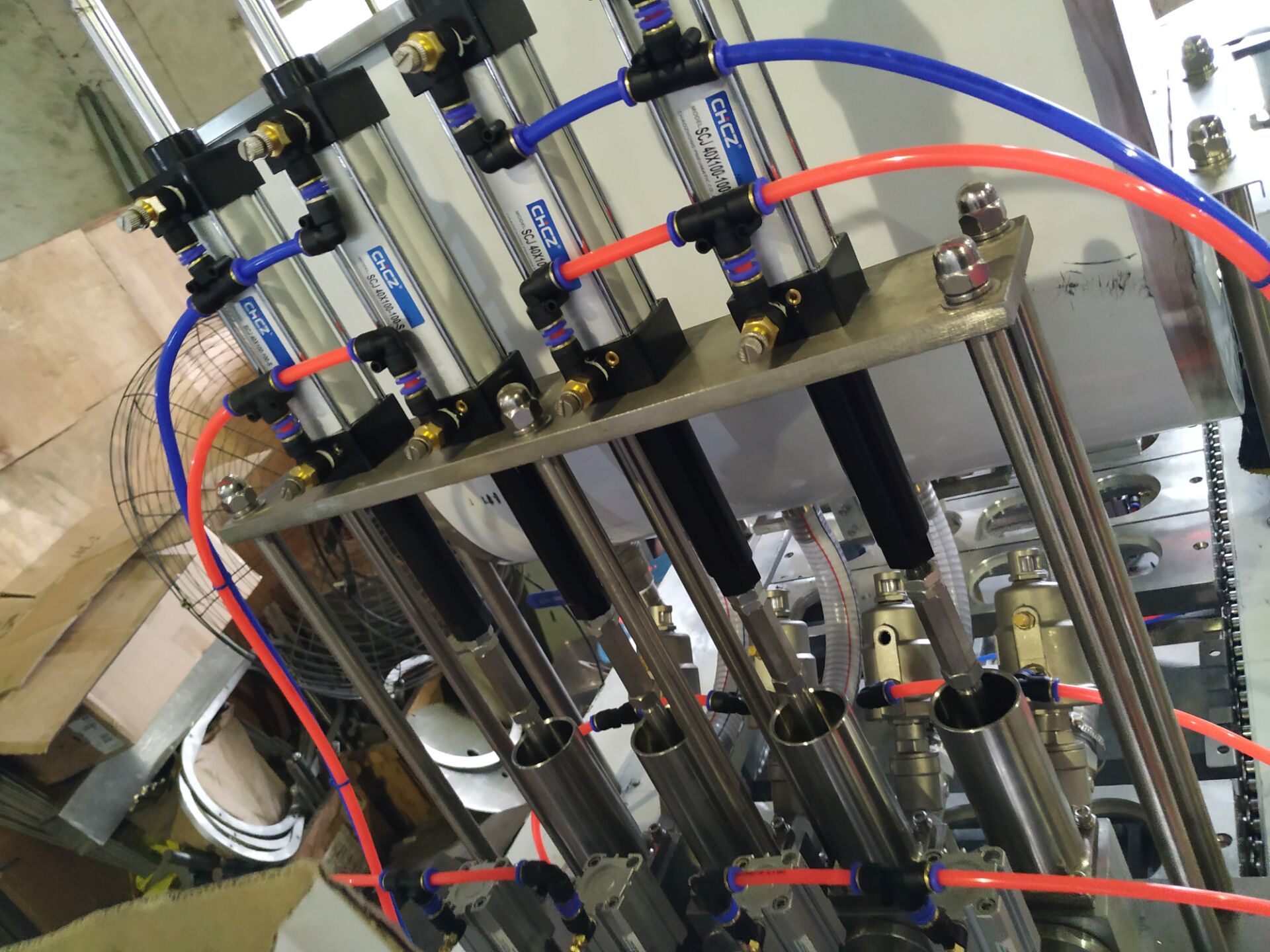

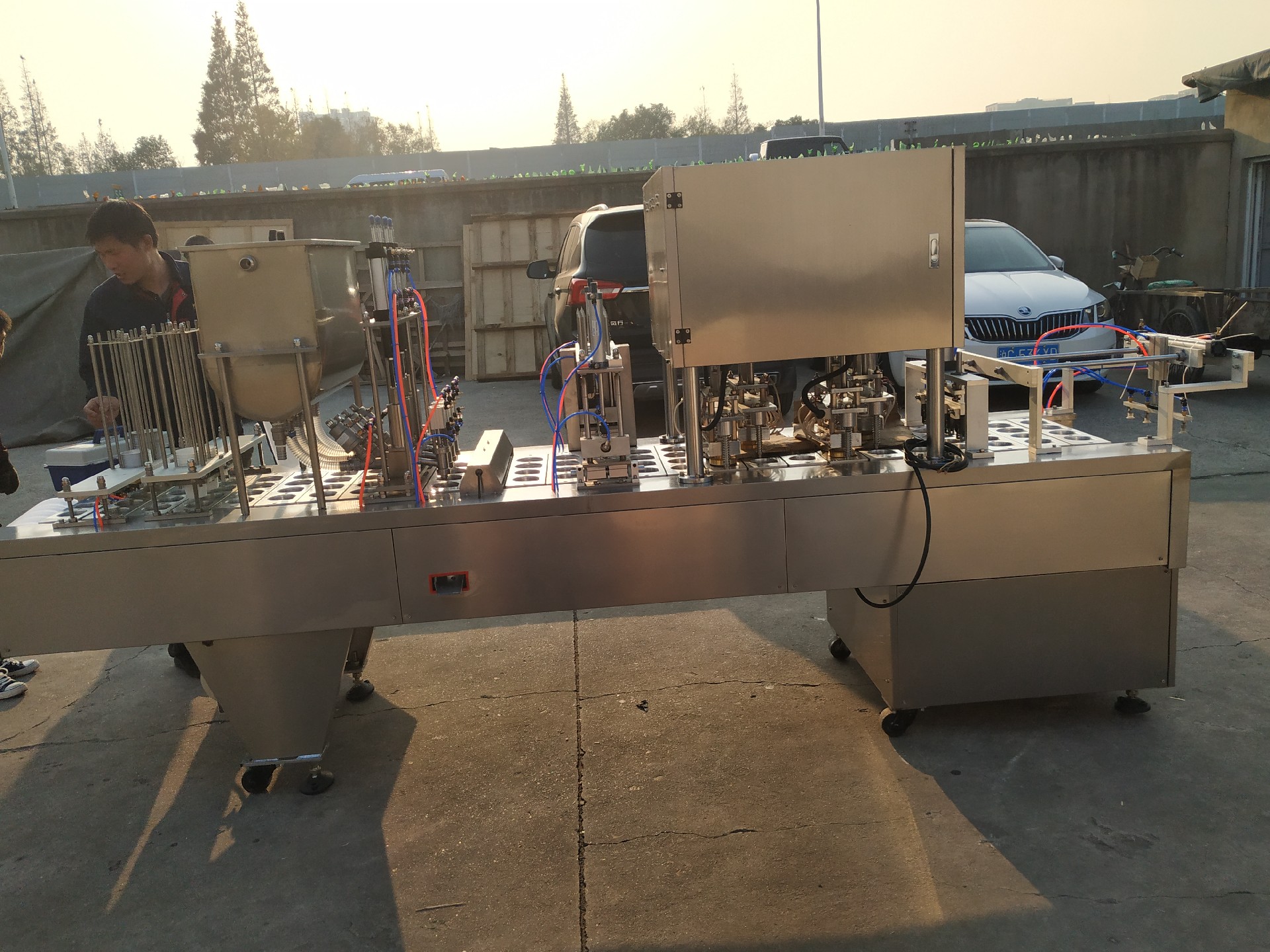

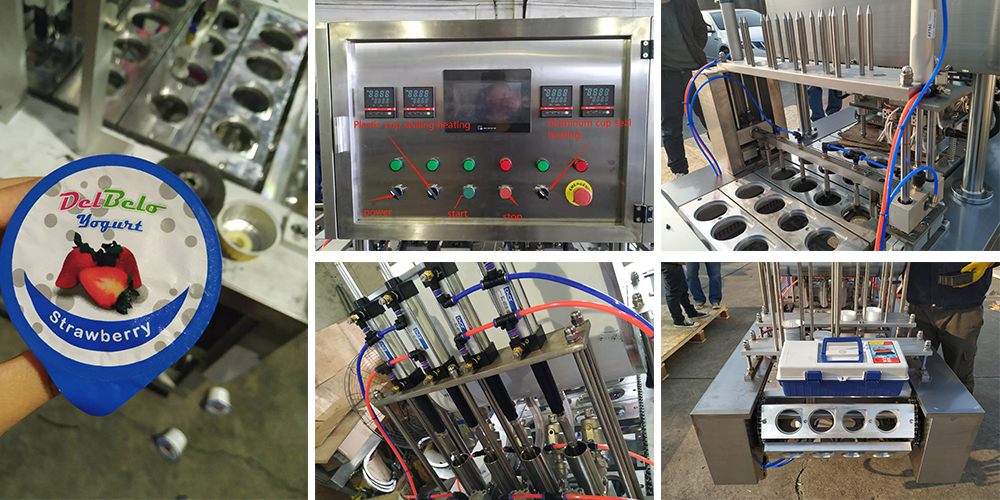

Product picture
