32 head semi-automatic bottle washing machine
32 head semi-automatic bottle washing machine
Product application and usage:

This machine is composed of motor, reducer, gear transmission system, water valve, spray port, and stainless steel shell.

  • Model: TPP-XP32
  • Capacity: 2300pieces/h
  • Voltage: 110V/220-240V/380V
  • Material: ss304
  • Dimension: 950*950*1350mm
  • Weight: 120KG
  • Product description


    Introduction:

    *This machine is mainly used for cleaning glass bottles and polyester bottles before filling.

    *It is suitable for washing disposable polyester bottles with slightly floating dust and glass bottles cleaned by bottle washing machine.

    *Continuous tracking spray washing bottle, high efficiency, good flushing effect, suitable for different specifications of bottle shape, wide range, easy operation and maintenance.

    *Compared with the traditional bottle washing machine, its energy consumption, water consumption, occupy space and so on at least 80% less, at the same time it is less pollution to the environment, easy maintenance, so the cost of operation is also very low.

    *This machine has reasonable punching process and less residual liquid.


    Feature:

    1, labor saving, high production efficiency, and low water consumption, simple structure, convenient maintenance.

    2, suitable for all kinds of bottle material old and new bottle flushing control.

    3. Spray the outer wall of the bottle and clean the inner wall at the same time.

    4, the surface of the contact liquid parts are all made of high-quality stainless steel, corrosion resistance, beautiful and generous. Fully meet the national health standards.

    5, work efficiency, according to customer needs, can use stepless speed regulating motor, efficiency changes accordingly.


    Product parameter


    Model

    TPP-XP32

    capacity

    2300pieces/h

    Washing head

    32 pieces

    power

    0.37kw

    voltage

    110V/220-240V/380V

    dimension

    950*950*1350mm

    weight

    120KG

    After packing

    950*950*1350mm,150KG

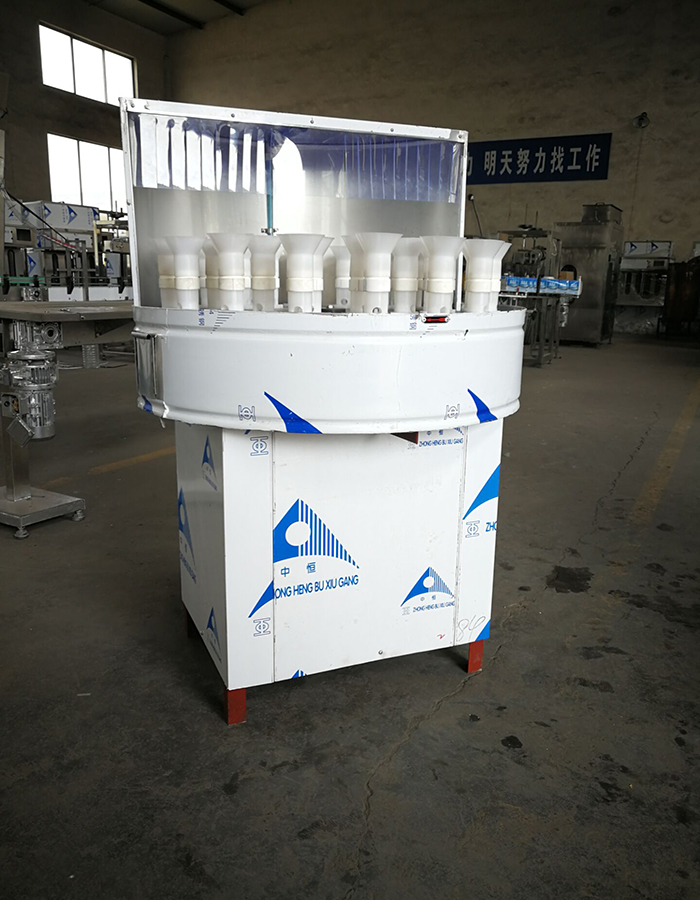

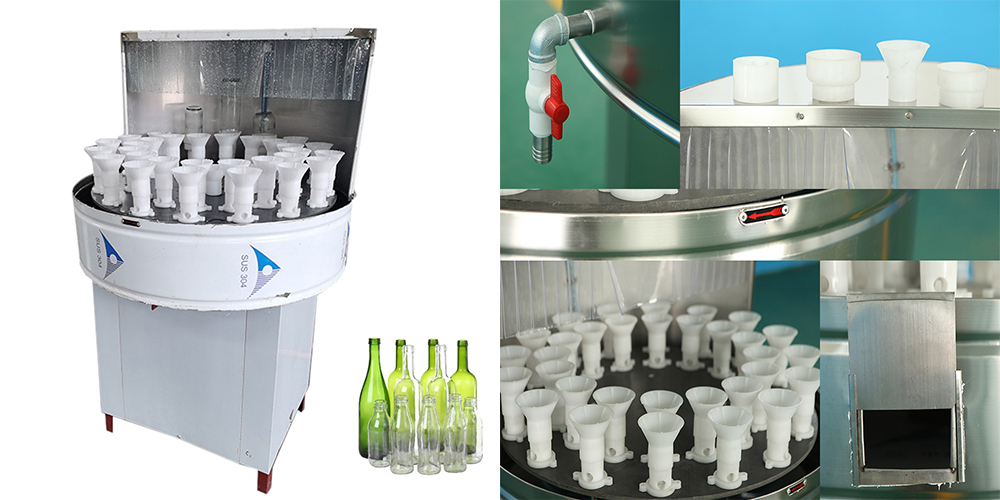

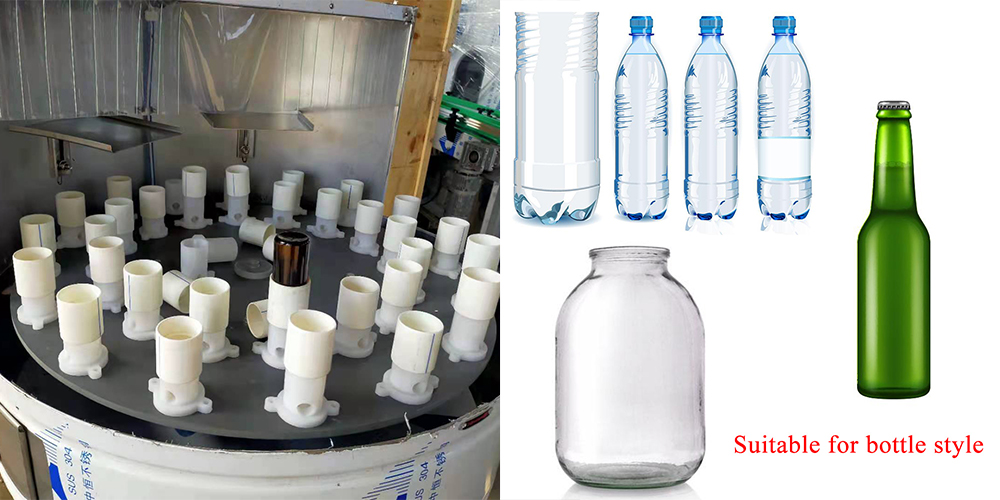

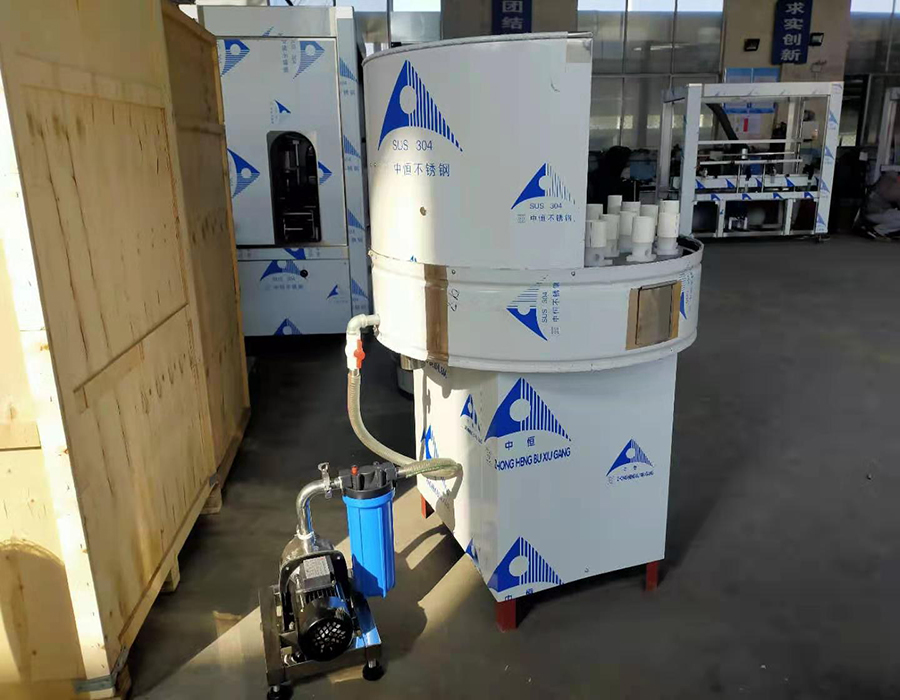

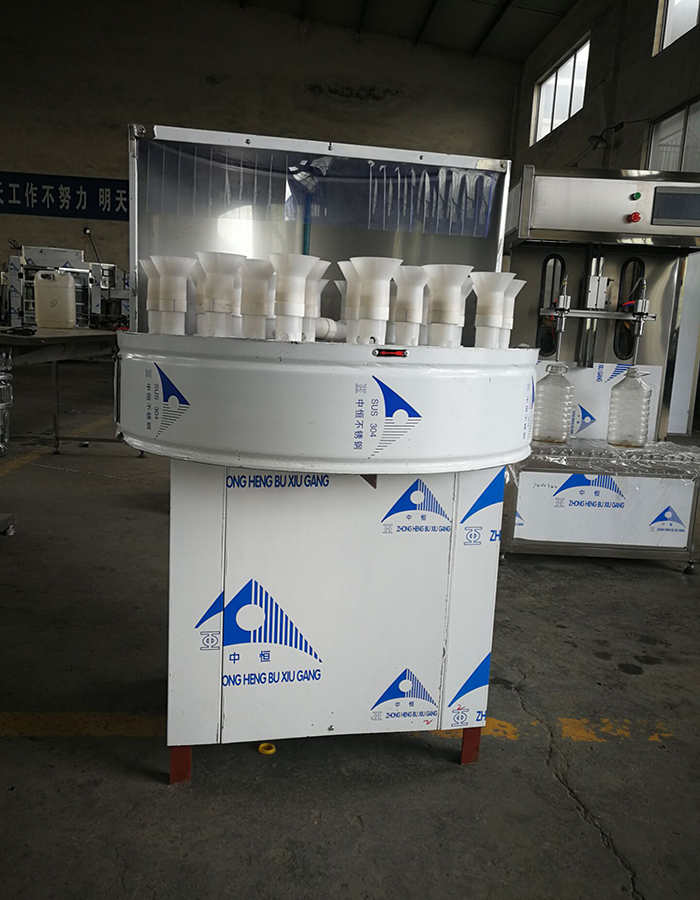

    Product picture
